RHI - new energy battery connection system experts!

Home > Product > Flexible Copper Busbar > Insulated

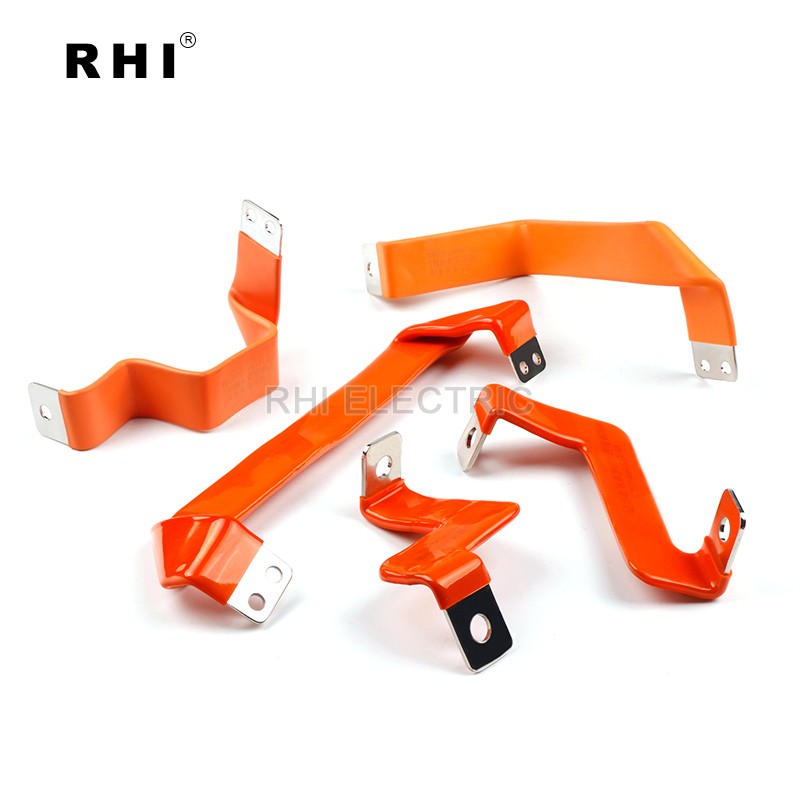

  1. New Energy Copper Flexible Busbar Battery Link Bus Bar

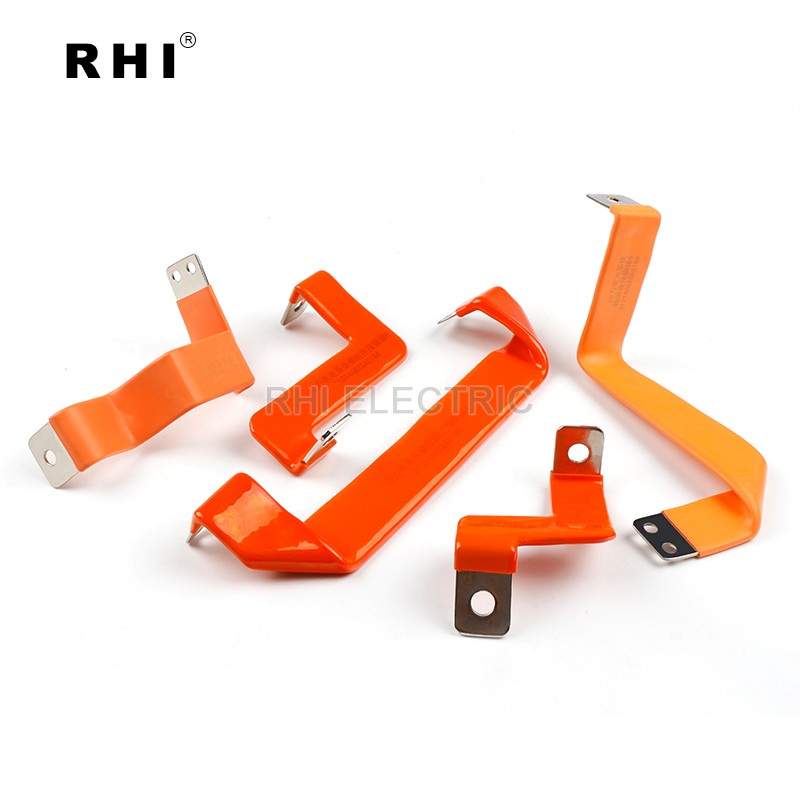

  2. New Energy Copper Flexible Busbar Battery Link Bus Bar

New Energy Copper Flexible Busbar Battery Link Bus Bar

  • OEM/ODMWelcome
  • BrandRHI
  • CertificateIATF16949, RoHS, Reach
  • Copper Content99.9%
  • Sleeves TypePVC Dipping or Heat Shrink Tubes
  • Current Rating
  • Surface Plating
  • Production Process
  • Specification

Flexible Busbar Products are widely used for EVs and HEVs, BEVs, Power Storage System, Generators, Battery Bank, BDU, PDU etc

  1. Detailed information

New Energy Copper Flexible Busbar  Battery Link Bus Bar

Laminated and Flexible Copper Busbar  are developed from high conductivity based electrolytic grade copper sheets/foils. These are made using a press welding procedure where individual copper strips are fused through applying direct current as well as pressure without the need of foreign material.

Copper foils are 0.1mm or 0.2mm thickness raw material, Many layers of copper foil/copper tapes can be welded by our automatic polymer diffusion welding machines, different busbar thickness can be customized. So it can meet different customers' demands with different electric current.

Flexible Busbar Products are widely used for EVs and HEVs, BEVs, Power Storage System, Generators, Battery Bank, BDU, PDU etc


Quick Details:

Material: T2 Copper with 99.9% Copper  Content

Electrical Conductivity:  58.0×10  (100% IACS standard)

Size: OEM/ODM Service

Volume Resistivity: ρ20° 0.01724 Ω?mm/m

Test:  Conductivity Testing, Temperature Rise Testing, Bending Testing, Flame Retardancy Testing for insulation sleeves etc

Insulation layer: PE heat shrinkable sleeves or pvc dipping sleevings etc

Photos Show:


 Busbar Copper with Heat Shrink Tubes Copper Flexible Busbar with PVC Dipping Copper Busbar with Epoxy Powder Coating
Custom Flexible Battery Busbar ModuleCustom Flexible Battery Busbar Module
Custom Flexible Battery Busbar Module

Specification of Flexible Copper Foil Busbar Connectors

Material StandardGB : T2 Copper with Min. 99.9%
DIN: E-Cu58 (Number: 2.0065)
EN: Cu-ETP ( Number: CW004A)
ISO: Cu-ETP
UNS: C11000
JIS : C1100
BS: C101
Other Material also can be customized
Resistance
0.00001Ω

Conductivity
≥57%

Copper Foil  of
Single Layer Thickness		0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure,
we will advise suitable thickness
Insulation MaterialPE Heat Shrink Sleeves & PVC Dipping Coating
PE Heat Shrink Tubing is good performance and cheaper, but easy to split or tear. Special shaped bus bar can be not put on easily
PVC Dipping Coating is good performance, Special shaped bus bar can  be put on directly, it is not easy to break when it be bent with many times.
Insulation PerformancePE and PVC are good, PVC dipping is better than PE heat shrink tubes
Flame Retardant/Fire ResistancePE Heat Shrink Tubes: UL94V-1, UL224 VW-1 etc
PVC Dipping Coating: UL94-V-0 or upon you request
Leakage  TestingPE Heat Shrink Tubes: In condition of 3000VDC with at 30s, Electric leakage is less 1 MA;
PVC Dipping Sleeves:
In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA;
In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA;
Or upon your working voltage, we advise to choose better solution.
Surface PlatingNickel, tin or silver plated etc
Plating Thickness:Normally 3um to 12um
or upon customers' request
Salt Spray TestingIn a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest
Bending TestingBend 10000 times in 15 radian angle without breakage or fracture.
Temperature Rise TestingDepend on flexible busbar cross-sectional area,
We can offer all temperature rising test report before delivery if you request
Operating Temperature
-45 to +150 oC

Copper Foil Tensile Strength≥500N
Quote TimeQuotation sheet will be sent in 1-3 working days when receive your enqiury
Sample/Trial Order
Delivery Time		In 5 -15 working days according to different bus bar structure and manufacture process
Quality Management StandardMeet Auto Industry IATF 16949
Eco-friendly Certificate
ROHS, REACH

Testers for Busbar:
Easy Bending Copper Fleixble Busbar for Car Motive Battery Pack

Testing Capabilities

Test Programs Tester Standard Test  Result
Endurance testEndurance meterupon your request √
Release force testUniversal material testing machineupon your request √
Loop resistance,contact resistance testLoop resistance testing equipmentupon your request√
Temperature rising testTemperature rising meterGB/T14048.1-2000√
Electric conductivity testConductivity meterYS/T478-2005√
Salt spray testSalt spraying meterGB/T2423.17-2008√
Thermal ageing, heat vibration testAir exchange aging test machineupon your request√
Coating thickness testX-ray coating thickness testupon your request√
Voltage drop testVoltage drop meterupon your request√


Different Types of Busbar:
Electrical Automotive Flexible Copper Bus Bar for Power Battery Pack
 Our Advantages:

Strong Manufacturer: We have 7000 m2 standard workshop to assure the stability of busbars
Strong After-sale Service: Our after-service team has 20 staffs. With professional busbar knowledge and more than 5 years' exporting experience, our team help to solve any problem during cooperation.
Timely Delivery: As to the standard copper busbar, we promise normal order will be delivered within 7 days. Non-standard copper bus bar delivery time, we can discuss.
Quality Guarantee: Material is tested before production to guarantee it is 100% new raw material. All busbars are inspected before delivery.
Competitive Price: We are professional factory to supply most competitive price with high quality. For long cooperation and large quantity, we can discuss discount price.



label:   Copper Busbar RHI
